ZR Micro Linear Motors are equipped with a comprehensive suite of advanced features tailored for precision and high-performance applications. These motors boast a coreless, brushless, and direct-drive architecture, ensuring seamless operation and exact positioning. The innovative toothless design effectively eliminates cogging and minimizes thrust ripple, delivering consistent and stable performance. Capable of generating high thrust under low-load conditions, they provide smooth thrust characteristics and rapid acceleration, making them ideal for dynamic systems. Superior thermal management is achieved through low thermal resistance and excellent heat dissipation, allowing for efficient operation even during continuous use. Additionally, the incorporation of lightweight, thermally conductive materials further enhances thermal performance. For enhanced functionality, integrated Hall commutation is available as an optional feature. The modular stator design supports virtually unlimited stroke lengths, and a variety of customization options are offered to meet specific application requirements. ZR Micro Linear Motors represent the perfect solution for applications that demand high precision, reliability, and exceptional performance.
Related products:

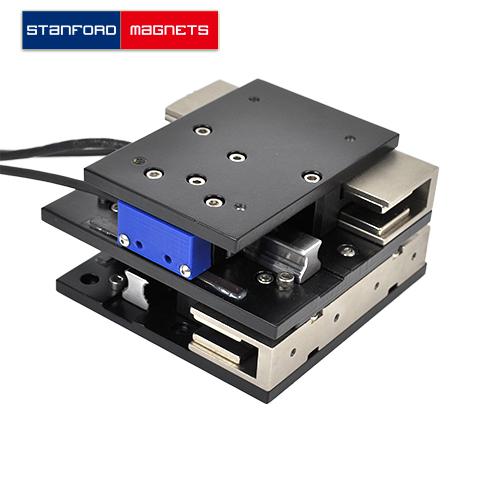

ZR Micro Linear Motor TMCY-0120-067-00A
ZR Micro Linear Motor TMCY-0120-080-00A
ZR Micro Linear Motor TMCY-0120-113-00A
|
Rated Performance |
||
|
Total Stroke |
mm |
30.0 |
|
Peak Force |
N |
39.6 |
|
Continuous Force @ 120℃ |
N |
12.0 |
|
Thrust Constant |
N/A |
7.5 |
|
Back EMF |
Vrms/(m/s) |
8.6 |
|
Coil gap |
mm |
0.7 |
|
Electrical Specifications |
||
|
Peak Voltage |
V |
27.0 |
|
Peak Current |
A |
5.3 |
|
Thrust Constant |
N/√W |
3.8 |
|
Peak Power |
W |
107.0 |
|
Electrical Time Constant |
ms |
0.22 |
|
Resistance |
Ohms |
5.1 |
|
Inductance |
mH |
1.1 |
|
Max. Winding Temperature |
℃ |
125.0 |
|
Mechanical Characteristics |
||
|
Mover Weight (Coil) |
g |
50.0 |
|
Magnetic Track Weight (magnetic track) |
g |
220.0 |
|
Mover Length |
mm |
47.0 |
|
Stator Length * Width |
mm |
78.8*30 |
|
Motor Thickness * Combined Height |
mm |
20*38 |
Optical equipment: Autofocus systems in cameras and microscopes.
Scanning systems: For precise movement in scanning electron microscopes (SEM) or atomic force microscopes (AFM).
Robotic surgery: For precise control of surgical instruments in robotic systems.
Hearing aids: For fine-tuning volume or frequency response.
Therapeutic devices: Such as in automatic drug delivery pumps.
Vibration motors: Used in smartphones, game controllers, and wearables for haptic feedback.
Miniature actuators: In devices like smartwatches or fitness trackers for dynamic response.
Robotics: Precision movement in robotic arms, grippers, and assembly lines.
3D printers: For fine motion control of print heads or extruders.
Satellites: Micro VCMs for positioning antennas, cameras, or other components.
Autonomous vehicles: Actuators for precise movement of sensors or cameras.
Drones and UAVs: For stabilizing and controlling flight systems.
Send us an Inquiry now to find out more Information and the latest prices, thanks!
