ZR Micro Linear Motors are designed with cutting-edge features that cater to high-precision and high-performance applications. Utilizing a coreless, brushless, and direct-drive mechanism, these motors ensure smooth operation and precise positioning. Their innovative toothless design effectively eliminates cogging and minimizes thrust ripple, providing consistent and stable performance. Capable of delivering substantial thrust with minimal load, they offer seamless thrust characteristics and rapid acceleration, making them ideal for dynamic systems. Superior thermal management is achieved through low thermal resistance and excellent heat dissipation, allowing for efficient operation even during continuous use. The incorporation of lightweight, thermally conductive materials further enhances thermal performance. For added versatility, integrated Hall commutation is available as an optional feature. The modular stator design supports virtually unlimited stroke lengths, and a wide array of customization options are available to meet specific application requirements. ZR Micro Linear Motors are the perfect choice for applications that demand exceptional precision, reliability, and performance.
Related products:

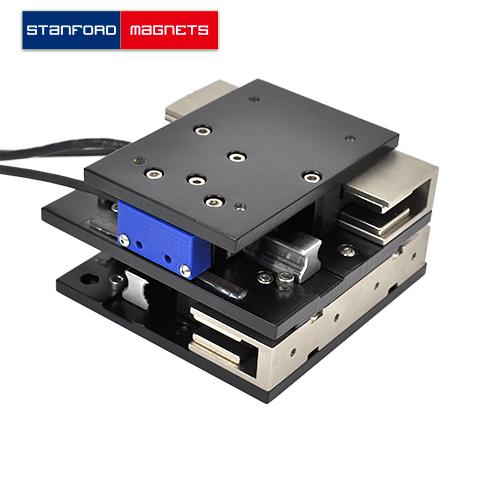

ZR Micro Linear Motor TMCY-0120-067-00A
ZR Micro Linear Motor TMCY-0120-080-00A
ZR Micro Linear Motor TMCY-0120-080-01A
|
Rated Performance |
||
|
Total Stroke |
mm |
40.0~60.0 |
|
Peak Force |
N |
39.6 |
|
Continuous Force @ 120℃ |
N |
12.0 |
|
Thrust Constant |
N/A |
7.5 |
|
Back EMF |
Vrms/(m/s) |
8.6 |
|
Coil gap |
mm |
0.7 |
|
Electrical Specifications |
||
|
Peak Voltage |
V |
27.0 |
|
Peak Current |
A |
5.3 |
|
Thrust Constant |
N/√W |
3.8 |
|
Peak Power |
W |
107.0 |
|
Electrical Time Constant |
ms |
0.22 |
|
Resistance |
Ohms |
5.1 |
|
Inductance |
mH |
1.1 |
|
Max. Winding Temperature |
℃ |
125.0 |
|
Mechanical Characteristics |
||
|
Mover Weight (Coil) |
g |
50.0 |
|
Magnetic Track Weight (magnetic track) |
g |
330.0 |
|
Mover Length |
mm |
47.0 |
|
Stator Length * Width |
mm |
112.5*30 |
|
Motor Thickness * Combined Height |
mm |
20*38 |
Optical equipment: Autofocus systems in cameras and microscopes.
Scanning systems: For precise movement in scanning electron microscopes (SEM) or atomic force microscopes (AFM).
Robotic surgery: For precise control of surgical instruments in robotic systems.
Hearing aids: For fine-tuning volume or frequency response.
Therapeutic devices: Such as in automatic drug delivery pumps.
Vibration motors: Used in smartphones, game controllers, and wearables for haptic feedback.
Miniature actuators: In devices like smartwatches or fitness trackers for dynamic response.
Robotics: Precision movement in robotic arms, grippers, and assembly lines.
3D printers: For fine motion control of print heads or extruders.
Satellites: Micro VCMs for positioning antennas, cameras, or other components.
Autonomous vehicles: Actuators for precise movement of sensors or cameras.
Drones and UAVs: For stabilizing and controlling flight systems.
Send us an Inquiry now to find out more Information and the latest prices, thanks!
